Biochar Soil Map: Will Biochar Help Your Garden?

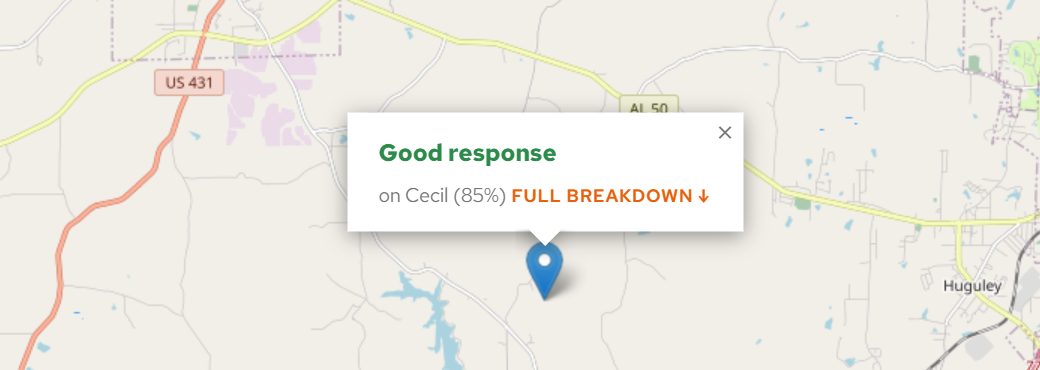

 Biochar Soil Map demo: clicking a spot near Huguley, AL returns 'Good response on Cecil (85%)' with a full breakdown link.
Biochar Soil Map: Will Biochar Help Your Garden? | Pi Fabricators

Will biochar help your soil?

Biochar is charcoal made specifically for soil — and not every soil benefits equally. This free biochar soil map shows where it will help across U.S. gardens, based on official USDA data. Click anywhere to see how much biochar would help that soil — and why.

Interactive biochar suitability map

Click anywhere on the map to see if biochar would help that soil.

What is biochar?

Biochar is charcoal made specifically for soil. Plant material — prunings, firewood, hedge trimmings, last year's corn stalks, animal manure — is heated in a low-oxygen fire until the volatile gases drive off and what's left behind is stable black carbon. The output looks like charcoal: black, brittle, and lightweight, with size and shape varying by feedstock — chunkier from branches and firewood, finer from stalks or trimmings. (Not the pressed briquettes most people grill with — those are a manufactured fuel product with binders and additives, sized and burned differently.)

What makes biochar useful is the structure. Each piece is honeycombed with microscopic pores — a single gram has hundreds of square meters of internal surface area. When mixed into soil, those pores act as a long-lasting reservoir for water, dissolved nutrients, and the microbial life that drives healthy soil. Unlike compost, biochar doesn't break down quickly. The bulk of it persists for hundreds to thousands of years, which is also why biochar is taken seriously as a carbon-sequestration tool[2].

How much fertility biochar brings on its own depends almost entirely on what it was made from. Wood-based biochars carry little nitrogen and only modest amounts of phosphorus and potassium — they're best paired with a separate fertility source. Manure-based and ash-rich crop-residue biochars, by contrast, can carry meaningful P and K — animal-manure biochars in particular concentrate the original feedstock's mineral content and behave partly as a slow-release P/K fertilizer[8]. (Nitrogen is a different story: most of it volatilizes off as gases during pyrolysis, so even manure biochar isn't a meaningful N source[10].) In every case the bigger contribution is structural: a permanent upgrade to the soil itself that helps water and nutrients stay where roots can use them. The catch is that not every soil benefits equally. Click your spot on the map at the top of this page to see how much biochar would help yours.

How biochar improves soil health

Biochar's benefit depends entirely on what your soil currently lacks. A pristine prairie mollisol — deep topsoil, balanced texture, high native organic matter — won't see much improvement; it doesn't need fixing. Soils with specific deficits respond dramatically. The map breaks the response into five mechanisms:

  • Water-holding boost — biochar adds capacity to hold water in soils that drain too fast (sandy soils especially).
  • Drainage and aeration — biochar's pores break up dense, compacted, or clay-heavy soils so water and air can move through them.
  • Nutrient retention (CEC) — biochar adds capacity to hold onto positively-charged nutrients like potassium, calcium, and ammonium so fertilizer doesn't flush out.
  • pH amelioration — most biochars are mildly alkaline, so they raise pH in acidic soils where phosphorus and other nutrients are locked up.
  • Organic matter boost — biochar adds essentially permanent carbon to soils that are short on it, providing structure for microbes and roots.

Does biochar raise soil pH?

Yes, in most cases. Most biochars finish pyrolysis with a pH between 8 and 10 — they're alkaline. Mixed into acidic soil, they buffer the acidity upward toward the 6.0–7.0 range most garden vegetables prefer. The effect is slower than agricultural lime but more durable: the alkalinity stays in the biochar's pore structure for years. The flip side: in already-alkaline soils — common across the arid West, where light rainfall leaves calcium and other base cations in place — the pH-raising mechanism stops being a benefit and may nudge pH further out of range. Meta-analyses still find some yield response in alkaline soils via non-pH pathways (water-holding, CEC, organic matter), but smaller and more variable than in acidic soils[1].

How biochar helps clay soil

Heavy clay is one of the soils where biochar makes the most visible difference, and it's the case people ask about most often.

The problem with clay isn't fertility — clay particles are tiny and chemically active, so they hold lots of nutrients. The problem is physics. Clay particles pack so tightly that water has trouble draining, air has trouble penetrating, and roots have trouble pushing through. After heavy rain, clay soils can stay saturated for days. During dry spells the same soil hardens into something close to brick.

Biochar's pore structure breaks up that dense matrix. Mixed at 5–10% by volume into the top 6–8 inches (15–20 cm), biochar opens up channels for water to drain through and air to reach the root zone[12][13]. Over multiple seasons the effect compounds — biochar particles continue to anchor improved soil aggregates and support a healthier microbial community that further opens up structure. Across the biochar literature, meta-analyses report soil bulk density decreasing by about 9% on average after biochar amendment, with related improvements in soil porosity and aggregate stability — the structural changes most relevant to clay's drainage and aeration problems[1].

How biochar helps sandy soil

Sandy soil has the opposite problem from clay. Sand particles are large and chemically inactive, so they don't hold water and they don't hold nutrients. Rain drains through quickly, taking dissolved fertilizer with it. The plants on top run out of both faster than gardeners expect.

Biochar in sandy soil acts like a sponge dropped into a sieve. Each biochar particle holds many times its weight in water and exposes a vast surface area where dissolved nutrients can stick instead of leaching out. The improvement is the largest of any soil type for water-holding capacity: meta-analyses report coarse-textured soils gaining around 47% more available water from biochar applications, compared to 9% in medium-textured soils and no significant gain in fine-textured soils[1].

Sandy soils also tend to have low cation exchange capacity (the soil's "grocery shelf" for nutrients) and low native organic matter — both deficits biochar addresses directly. So in a typical sandy soil, three of the five mechanisms (water-holding, CEC, organic matter) all fire at once. That's why sandy gardens often see the most dramatic biochar response in the first season.

One caveat for sandy soils: fresh, uncharged biochar can temporarily soak up dissolved nutrients into its pores, leaving less available to plants in the first few weeks. Charging biochar with compost tea or mixing it with compost a few weeks before applying prevents this, and it's worth doing anywhere — but especially in sand, where plants have less native nutrient buffer to spare.

For a real-world case study: one gardener mixed biochar two feet deep into a raised bed that had been losing water out the bottom and turned it into a soil sponge dense with tomato plants — read Allan's biochar tomato experiment.

Biochar in the garden

For most home gardens — vegetable beds, ornamental beds, fruit trees — biochar is added once and lasts indefinitely. A typical starting rate is 5–10% biochar by volume mixed into the top 6 inches (15 cm) of soil[12][13]. That works out to roughly half a gallon of biochar per square foot at a 6-inch depth (about 2 L/m²). Apply it the same way you'd apply compost: spread, fork in, water in, then plant.

A few practical points when using biochar:

  • Charge it first. Mix biochar with compost a few weeks before applying, or soak it in liquid fertilizer or compost tea. Fresh biochar can temporarily tie up nutrients — its empty pores soak up nutrients directly from the soil, and the microbes moving in further lock up nitrogen as they grow. Charging pre-loads the pore structure so it doesn't pull from your soil instead.
  • Apply once, benefit forever. Unlike compost, biochar doesn't break down. One amendment is permanent. You can re-amend in subsequent seasons if you have more material, but it's not necessary.
  • Don't surface-spread. Biochar works through physical interaction with soil. Sitting on top, it does nothing. Mix it in. (Biochar as mulch — one side experiment we're running: coarse chunks of biochar straight out of our Biochar-Making Fire Pit as a top mulch. Unlike bark mulch, biochar won't rot away — the chunks should hold up for years on the surface and eventually break into smaller pieces that get incorporated into the soil. We'll see how it goes.)
  • Pair with fertility. Most biochars — especially wood-based — carry little nitrogen and only modest P and K of their own. They upgrade the soil's structure but don't replace your fertilizer or compost program. Manure-based biochars carry more P and K but still pair best with active compost (and still aren't a meaningful nitrogen source — most of manure's N volatilizes during pyrolysis).

For container gardens, biochar at roughly 10–15% of the potting mix volume gives a noticeable water-holding boost and reduces how often you need to feed and water. Smaller particle sizes (under 1/4 inch / 6 mm) work better in containers than chunky biochar.

For a deeper look at why biochar acts as a soil sponge, magnet for nutrients, and microbe hotel, see our companion guide: How biochar makes your garden thrive — water, nutrients, habitat. And as an unexpected bonus, a one-inch top layer of coarse biochar can give beneficial insects a cool microclimate during summer heat — one greenhouse owner kept his ladybug population from leaving after he started using it.

Biochar vs charcoal

People often ask whether they can just use bagged charcoal from the grocery store. The short answer is no, and the reason is what the two products are made for.

Cooking and grilling charcoal is selected and sized for fuel performance: high heat, even burn, easy ignition. Briquettes are typically pressed with binders (starch, paraffin, sometimes accelerants) and produced for uniform combustion. Lighter fluid, ash content, and particle size are all wrong for soil use, and the additives can be actively harmful to soil microbes and plant roots.

Biochar is selected and sized for soil performance: high surface area, intact pore structure, no additives, particle sizes appropriate for incorporation. The pyrolysis process is similar in principle but the production specs are different — typical biochar is made between 750°F and 1,290°F (400–700°C)[9] and the temperature, residence time, and feedstock are controlled to optimize stable carbon and pore structure rather than fuel value.

The shorthand: same chemistry family, completely different products. If you want soil benefit, get (or make) biochar.

Biochar vs. compost

Biochar and compost work better together than either alone. The two amendments solve different problems and complement each other directly.

Compost brings nutrients and active microbial life. Biochar brings structure and durability. When you mix them — either by composting biochar in with the rest of your compostables, or by pre-mixing finished compost with biochar a few weeks before application — the biochar's pores get colonized by compost microbes and pre-loaded with the soluble nutrients in the compost. The result is biochar that "comes alive" before it ever hits your soil — and once it's in the ground, those same pores hold the compost's nutrients in the root zone instead of letting them leach away.

A typical mix is 1 part biochar to 3–5 parts compost by volume, blended and held for 2–6 weeks before application. Some gardeners simply add biochar to their existing compost pile during normal turning. Either approach works.

This is also the practical answer to "do I need to charge my biochar?" — composting it with active compost charges it as well as any other method, and it folds biochar into a maintenance routine you're already doing.

Is biochar a fertilizer?

Not really — biochar is closer to a permanent upgrade to soil structure than a nutrient source. Wood-based biochars carry little nitrogen and only modest phosphorus and potassium, so they aren't a fertilizer substitute by themselves. Manure-based biochars carry meaningfully more P and K and can offset some fertilizer use[8], but their nitrogen mostly volatilizes during pyrolysis[10], so even manure biochar isn't a meaningful N source at practical application rates.

Where biochar reliably reduces fertilizer use is by holding the fertilizer you apply in the root zone instead of letting it leach away. The effect is largest in sandy soils — a 2024 systematic review found mineral N leaching decreased by about 38% on average with biochar in sandy-textured soils, while soil-available N and P increased by 36% and 34% respectively[3]. On a well-structured Mollisol that already holds nutrients tightly, the same retention gain is much smaller — there's less leakage to plug. Click your spot on the map at the top to see whether your soil falls in the "big leakage to fix" or "already holds nutrients well" category.

Biochar carbon sequestration

Biochar carbon sequestration is one of the few ways a backyard gardener can build a long-term carbon sink. The mechanism is simple: plants pull CO₂ out of the air as they grow, but when they decay they release that carbon back into the air as CO₂. Converting that biomass — prunings, hedge trimmings, last year's corn stalks — to biochar before it decays locks the carbon into a form that resists decomposition for centuries to millennia.

The numbers come from Schmidt et al. 2022 (Permanence of Soil-Applied Biochar, the Biochar Journal)[2]. For well-made biochar with a hydrogen-to-carbon ratio below 0.4, roughly three-quarters of the carbon is in a highly stable form that resists breakdown for over 1,000 years. The remaining quarter is semi-stable and decomposes gradually over the first few hundred years. In the short run, making biochar releases some of the biomass's carbon as CO₂. In the long run, though, that same biomass would have decayed and released all of its carbon anyway — biochar instead locks a portion of it away.

This applies to every soil on the map, even where the soil-improvement benefit is small. The carbon-sink effect doesn't depend on whether your soil also gets the other benefits. A pristine mollisol that sees only a small soil-response gain from biochar still gets the full carbon-sequestration benefit. So even if your map result is "Negligible" or "Low," biochar applied to your soil is still a stable carbon sink.

How is biochar made?

Biochar is made by heating biomass — prunings, firewood scraps, hedge trimmings, last year's corn stalks, manure, almost any biocharable material — in a low-oxygen environment until it turns into stable carbon. The technical name is pyrolysis, but the practical setup is simple: a flame cap kiln like our Biochar-Making Fire Pit is just an open-top steel vessel. The flame layer on top consumes the oxygen coming in from above, and the closed bottom keeps oxygen from being drawn up through the pile — so the biomass underneath the flames sits in a low-oxygen zone. Instead of burning to ash there, the heat breaks the biomass down into smaller compounds that off-gas, leaving the carbon skeleton behind in roughly its original physical shape.

Pyrolysis happens at temperatures between about 750°F and 1,290°F (400–700°C)[9], and the right target is the higher end — enough heat to drive the hydrogen-to-carbon ratio of the finished biochar to 0.4 or less[2]. That's the threshold for the long-term-stable form of biochar described in the carbon-sequestration section above. Lower-temperature char carries more residual volatiles and breaks down faster in soil[9]; biochar's job is long-term structure and carbon storage, not short-term nutrient delivery — that work belongs to compost and fertilizer.

Common questions about biochar

How much biochar should I add to my garden?

A common starting rate is 5–10% biochar by volume mixed into the top 6 inches (15 cm) of soil — roughly half a gallon of biochar per square foot at a 6-inch depth (about 2 L/m²). For broadacre application, 5–10 tons per acre (11–22 t/ha) is a typical starting range[12][13]. Pair biochar with compost or fertilizer; wood-based biochars carry little nitrogen and only modest P and K, so combining with a fertility source usually gives the best response. Manure-based biochars carry more P and K on their own, though their nitrogen mostly volatilizes during pyrolysis.

How long does biochar last in soil?

Roughly three-quarters of biochar is highly stable carbon that resists decomposition for over 1,000 years (Schmidt et al. 2022)[2]. The remaining quarter is semi-stable and breaks down gradually over the first few hundred years. This is why biochar is also valued as a long-term carbon-sequestration tool, not just a soil amendment.

Does biochar work on alkaline soil?

Less reliably than in acidic soil. Most biochars are themselves alkaline, so the pH-raising benefit doesn't apply and could nudge soil pH further out of range. Meta-analyses still find some yield response in alkaline soils via non-pH pathways (organic matter, water-holding, CEC), but smaller and more variable than in acidic soils[1]. If your soil pH is well above 7.5, a local extension office can advise before applying at scale.

Why does a shallow water table cap the biochar rating?

A shallow seasonal water table caps the rating because NRCS's Water Table sub-rule overrides every other soil property when it's low. The cause is the seasonal high water-table depth, and it can affect any soil texture — sandy, loamy, clay, organic. Texture isn't the determining factor. The Alapaha series in the south Georgia coastal plain is a textbook example: sandy on top, clay and plinthite underneath, water table at or near the surface for months a year. Looking at Alapaha's individual soil properties (sandy texture, low organic matter, low nutrient-holding capacity), you'd predict a strong biochar response — but NRCS's overall rating comes back Negligible.

Why NRCS rates these soils this way isn't clear. NRCS's overall biochar rating is computed by combining several underlying sub-rules, but they haven't published the formula — the official rule lives in NASIS, NRCS's internal soil-survey database, and isn't documented in any public technical note we could find. Notably, the peer-reviewed biochar literature points the opposite direction: a 2022 review in Biochar on biochar in extreme-weather-stressed soils reports that biochar improves drainage, aeration, hydraulic conductivity, and aggregate stability in flood-degraded soils — and is specifically effective on sandy soils with low CEC, depleted organic matter, and intense flooding, a description that seems to match the Alapaha case[11]. So NRCS's gating behavior isn't an obvious reflection of the published science. We can describe what their API returns; we can't tell you what their engineers were weighing. If we learn NRCS's reasoning later, we'll update this section accordingly.

What the data shows. To map the gating behavior, we queried NRCS's Soil Data Access REST API across hundreds of soil components covering the full range of water-table conditions, then looked at how the overall rating tracked against each component's Water Table sub-rule value. A clear pattern emerged.

One scale note before the numbers. The "Water Table sub-rule" referenced below is a separate NRCS sub-rule — not one of the five mechanism scores on the click result. It's NRCS's biochar-tuned 0–1.0 interpretation of the seasonal water-table depth. NRCS publishes parallel water-table sub-rules for other land uses (industrial hemp, wine grapes, forest windthrow, military excavations, and others), each applying its own fuzzy curve to the same underlying water-table depth data — so the score we read is specifically "how suitable is this water-table depth for biochar?", not a generic water-table measurement.

Both the five mechanism scores and the Water Table sub-rule run 0–1.0, but they mean different things:

  • Mechanism score (Water, Drain, CEC, pH, OM) — high value = your soil has a deficit biochar would address.
  • Water Table sub-rule — value 0 = NRCS classifies the site as "poorly suited" because the seasonal water table is too shallow for biochar; value near 1 = the water table sits deep enough to be a non-issue.

On both scales, higher is favorable to biochar improving your soil. But the scores describe different things, and biochar's overall benefit depends on multiple factors lining up.

  • At Water Table sub-rule value = 0 (NRCS's "Depth to high water poorly suited" classification — the worst site-suitability score), every component we sampled — without exception — rated Negligible at the headline level.
  • Between 0 and roughly 0.25, the headline can rise to "Low" at best.
  • Between 0.25 and 0.5, "Fair" at best.
  • Between 0.5 and 0.75, "Good" at best.
  • Only above 0.75 can a soil reach "Excellent".

The ceilings sit exactly at the standard NRCS interpretation-class breakpoints (0, 0.25, 0.5, 0.75), which strongly suggests the Water Table sub-rule is functioning as a categorical site-suitability cap on the overall rating, not just one of several equally-weighted contributing factors. This is an empirical finding from public API data, not a description of the official NRCS aggregation formula, which we don't have access to.

What this means for you. If your rating surprised you, the mechanism scores below tell you what biochar would help with on each individual soil property. The headline rating includes the additional site-level check we just described, so the headline can come out meaningfully lower than the mechanism scores by themselves suggest. For high-stakes applications a local extension office or a qualified soil scientist can help interpret the trade-off for your specific spot.

Do I have to charge biochar before using it?

It's strongly recommended. Fresh biochar can temporarily tie up nutrients — its empty pores soak up nutrients directly from the soil, and the microbes that colonize those pores further lock up nitrogen as they grow. Charging — soaking biochar in compost tea, manure tea, or liquid fertilizer for a few weeks before applying, or composting it with finished compost — pre-loads the pore structure with nutrients and avoids that temporary lockup.

Will biochar hurt my soil if I use too much?

At typical garden rates (5–10% by volume) overuse isn't really a concern. Higher rates aren't well studied — most field research uses modest amounts, and the few studies that push into very high rates show mixed results: some crops slow down, others don't, and properly-charged biochar at very high rates hasn't been cleanly tested either direction. If you want to go significantly above standard rates, charge the biochar fully, pair with compost, and consider splitting the application across multiple seasons rather than applying it all at once.

Is biochar safe for vegetable gardens?

Yes — properly-made biochar from clean feedstock is safe for food crops. The thing to watch for is contamination: biochar made from treated wood, painted wood, or industrial waste streams can contain heavy metals or persistent organics. Buy biochar from producers who can show analytical results, or make your own from clean feedstock.

What's the best feedstock for garden biochar?

If you're making your own, the best feedstock for garden biochar is whatever clean wood or crop residue you already have on hand — for most home gardens, the difference between using biochar at all and not using it is much bigger than the difference between feedstocks. Practical sources include prunings from fruit trees and ornamentals, firewood scraps, hedge trimmings, and last year's corn stalks. Start with what's piling up next to your shed. If you're buying biochar instead, manure-based products carry meaningfully more phosphorus and potassium than wood-based ones and can substitute for some fertilizer use[8] — though over 60% of manure's nitrogen is released as gases during pyrolysis[10], so even manure biochar isn't a meaningful N source at practical application rates.

Does biochar reduce the need for fertilizer?

Indirectly, mostly through nutrient retention. Wood-based biochars carry little nitrogen and only modest P and K of their own, so they're not a fertilizer substitute. What they can do is reduce nutrient leaching — the fertilizer you apply stays in the root zone longer instead of washing past plant roots. How much of a difference that makes depends heavily on your soil. The effect is most dramatic on sandy soils, where a 2024 systematic review found mineral nutrient leaching decreased by about 38% on average with biochar, while soil-available N and P increased by 36% and 34% respectively[3]. On a well-structured Mollisol that already holds nutrients tightly, the same fertilizer-retention gain is much smaller — there's less leakage to plug. Click your spot on the map at the top to see whether your soil falls in the "big leakage to fix" or "already holds nutrients well" category. Manure-based biochars also carry meaningful P and K themselves and can directly substitute for some fertilizer use[8]. Over time, either path can mean using somewhat less fertilizer to achieve the same plant response.

More questions about making, charging, and storing biochar — and about caring for the biochar-making fire pit — are answered on our Biochar FAQs page and in our Biochar-Making Fire Pit getting-started guide.

How this tool works

The map runs on USDA NRCS data. When you click, your coordinates are sent to the Soil Data Access REST API, which looks up the dominant soil at that location in the SSURGO database — the same database soil scientists use professionally. We then pull NRCS's official Dynamic Soil Properties Response to Biochar rating for that soil. The headline category — Negligible, Low, Fair, Good, or Excellent — comes directly from NRCS.

This data is U.S. only. SSURGO covers the 50 states plus U.S. territories (Puerto Rico, the U.S. Virgin Islands). International coverage isn't available — there's no global equivalent of the NRCS biochar rating. The rest of the world is dimmed on the map to show that. If you click outside the U.S., you'll get a note explaining why no result is shown.

The "Why" breakdown translates NRCS's underlying sub-rules into five plain-English mechanisms (water-holding boost, drainage, nutrient retention, pH, organic matter). Where NRCS surfaces a sub-rule for your soil, we use their value. Where they don't, we compute a quick proxy from the same SSURGO soil properties using thresholds calibrated against the peer-reviewed biochar literature. Every mechanism card carries a source line at the bottom — "Source: NRCS sub-rule …" when the score came straight from the API, "Source: derived from SSURGO …" when the proxy fired — so you can always tell which path produced a given score.

How the mechanism scores are computed

Each mechanism's 0–1.0 score normally comes from a published NRCS sub-rule for your soil. When NRCS hasn't published a sub-rule for a given mechanism on a given soil, the tool computes a proxy from raw SSURGO soil properties on the same 0–1.0 scale, so the two values are interchangeable when the dots and copy are rendered. The source line on each mechanism card tells you which path produced that score.

What the NRCS source labels mean. The labels you see on each mechanism card — SOH - AWC Average 0-30cm and similar — are NRCS's canonical identifiers from their internal soil-survey database (NASIS). SOH stands for "Soil Health" — NRCS's namespace prefix for the Soil Health interpretation sub-rules that feed the parent Dynamic Soil Properties Response to Biochar rating. Each sub-rule is a biochar-tuned 0–1.0 curve over a generic soil property (AWC, Ksat, CEC, pH, etc.) — high score = your soil has a deficit that mechanism would address. The eight sub-rules the tool reads, grouped by mechanism:

Mechanism NRCS sub-rule What it measures
M1 — Water-holding boost SOH - AWC Average 0-30cm Available Water Capacity (the portion of soil water plant roots can actually use, between field capacity and the permanent wilting point) in the top 30 cm.
M2 — Drainage improvement
Up to four sub-rules; highest score wins.
SOH - Ksat Max 0-30cm Saturated hydraulic conductivity (how fast water moves through fully wet soil), peak value in the top 30 cm. Curve flags water-logged soils where biochar's porosity helps.
SOH - Bulk Density Ratio Max 0-30cm Bulk density relative to a reference (a compaction indicator), peak value in the top 30 cm.
SOH - Ponding Rating (Suitability) Susceptibility to surface ponding (water sitting on top of the soil).
Water Table Rule (Biochar Response) Seasonal high water-table depth. Also separately acts as a categorical cap on the headline rating — see "Why does a shallow water table cap the biochar rating?" in the FAQ.
M3 — Nutrient retention SOH - MEQ 0-30cm Milliequivalents of base cations in the top 30 cm — effectively a CEC measure on a biochar-tuned curve. High score = low native CEC = more room for biochar's exchange-site contribution.
M4 — pH amelioration SOH - pH WTD_AVG 0-30 Suitability Depth-weighted average pH in the top 30 cm. Curve peaks on strongly acidic soils where biochar's alkalinity helps most; drops to zero on already-alkaline soils where biochar could push pH further out of range.
M5 — Organic-matter augmentation SOH - Organic Carbon, kg/m² to 30 cm Organic carbon stock per square meter in the top 30 cm. NRCS publishes this less consistently across soils than the other sub-rules, so this is the mechanism most likely to fall back to the SSURGO proxy.

SSURGO fallback ladders. When none of the sub-rules above are published for a given mechanism on your soil, the tool falls back to a single-property threshold ladder over a raw SSURGO property — picked so a high score still means your soil has a deficit that mechanism addresses.

Mechanism SSURGO field Threshold ladder
M1 — Water-holding boost Sand % ≥ 80% → 0.85
≥ 65% → 0.65
≥ 40% → 0.40
≥ 25% → 0.20
otherwise → 0.05
M2 — Drainage improvement Drainage class, clay %, bulk density Multiple signals, highest wins:
"poorly drained" → 0.70
"moderately well" → 0.35
clay ≥ 40% → 0.60 / ≥ 30% → 0.40 / ≥ 20% → 0.20
bulk density ≥ 1.55 g/cm³ → 0.55
M3 — Nutrient retention CEC at pH 7 (cmolc/kg) < 5 → 0.85
< 10 → 0.60
< 15 → 0.35
< 25 → 0.15
otherwise → 0.05
M4 — pH amelioration 1:1 water pH < 4.5 → 0.90
< 5.5 → 0.70
< 6.0 → 0.45
< 6.5 → 0.20
6.5–7.5 → 0.05
> 7.5 → 0 (flagged alkaline; card swaps to caveat copy)
M5 — Organic-matter augmentation Organic matter % < 1% → 0.85
< 2% → 0.60
< 3.5% → 0.35
< 5% → 0.15
otherwise → 0.05

A few design choices worth knowing:

  • Single-property ladders, not multivariate regressions. SSURGO doesn't expose enough soil-paired biochar-response data to fit a confident regression. Threshold ladders are auditable and tie to literature breakpoints — the M3 CEC < 5 cutoff maps to the low-CEC regime where biochar's exchange-site contribution dominates; the M4 pH < 5.5 cutoff maps to the strongly acidic regime where ash-content liming has its largest effect[6].
  • NRCS values always take precedence. The proxy only fires for a specific mechanism that NRCS didn't publish a sub-rule for on that specific soil. The headline rating (Negligible–Excellent) still comes directly from NRCS regardless.
  • Missing SSURGO field → "not enough data," not 0. When the raw property is unavailable (genuine data gap on that soil), the mechanism card renders "Not enough data for this mechanism on this soil" rather than silently scoring 0.
  • M1 is sand-only by design. The biochar water-retention literature credits coarse-textured soils most strongly (Razzaghi et al. via[1]). Heavy clays also benefit from biochar, but more through structural improvement than water-holding — that benefit is credited via M2 (drainage improvement) instead, so the overall score still moves in the right direction on clay soils.

For developed and suburban areas where the click point falls on "Urban land" — a NRCS designation for areas mapped after development — we automatically look at the surrounding soil within a small radius, starting at about 250 meters. The soil 250 meters from your house is overwhelmingly the same soil that was under your house before construction; we use it as a reasonable proxy and we always tell you when we did. Construction can disturb the top foot or so of soil, so for high-stakes applications a real soil test is still the gold standard.

SSURGO is mapped at field scale — detailed enough to draw soil boundaries around areas as small as a few acres, so a small property often spans two or three different soils. (Typical survey map scales are 1:12,000 to 1:24,000, meaning one inch on the original map covers about 1,000 to 2,000 feet on the ground — the same scale as a standard USGS topographic map.) What you see in the popup is the dominant component of the map unit your click falls in; map units usually include smaller minor components mixed in alongside the dominant one, so the soil under your feet can still differ from what's shown. Soil itself is stable over the timescale of these surveys: barring construction grading, major flooding, or other land-use disturbance, the soil mapped years ago is essentially the soil there today.

Mapping detail varies by land use. NRCS allocates survey effort to where it matters most for agriculture. Productive cropland and farm regions are mapped most intensively — what NRCS calls Order 1 and Order 2 surveys, with minimum soil delineations as small as 1.5 acres. Rangeland, forest, and wildland areas are mapped at lower detail — Order 3 through Order 5, with minimum delineations from a few acres up to several thousand. So a click in the Iowa corn belt or California's Central Valley lands on much more granular soil data than a click in remote forest, range, or wildland; the result in those areas is averaged across hundreds or thousands of acres rather than the individual acres under your feet.

The tool is meant for screening — it's the right resource for "should I try biochar?" questions. For "how much biochar should I apply on this specific site," talk to your local cooperative extension office or its Master Gardener program (free or low-cost soil testing and gardener-tailored advice) or a qualified soil scientist.

Data anchors: USDA NRCS Soil Health Data Explorer, SOH - Dynamic Soil Properties Response to Biochar interpretation[4]; SSURGO database[5]. Mechanism framing draws on the 2025 Biochar journal pH meta-analysis[6], Ma et al. 2016 mollisol field trial[7], Novak, Johnson & Spokas 2018 (manure vs lignocellulosic biochar P/K)[8], and Li et al. 2023 (feedstock comparison)[9], alongside the per-mechanism citations [1]–[3] above. Application-rate ranges informed by Domingues et al. 2020 (CEC response and rate)[12] and Ye et al. 2020 (yield response by fertilizer-pairing and rate)[13]. Full citations in the References section below.

References

  1. Schmidt, H. P., Kammann, C., Hagemann, N., et al. (2021). Biochar in agriculture — A systematic review of 26 global meta-analyses. GCB Bioenergy, 13(11), 1708–1730. https://doi.org/10.1111/gcbb.12889 (Source for the bulk-density 9% and texture-stratified water-retention 47% / 9% / no-significant-gain numbers, both of which Schmidt's review attributes to Razzaghi et al. 2020 and quotes verbatim.)
  2. Schmidt, H. P., Abiven, S., Hagemann, N., & Meyer zu Drewer, J. (2022). Permanence of soil applied biochar. The Biochar Journal, ISSN 2297-1114. https://www.biochar-journal.org/en/ct/109
  3. Bekchanova, M., Campion, L., Bruns, S., Kuppens, T., Lehmann, J., Jozefczak, M., Cuypers, A., & Malina, R. (2024). Biochar improves the nutrient cycle in sandy-textured soils and increases crop yield: a systematic review. Environmental Evidence, 13:3. https://doi.org/10.1186/s13750-024-00326-5
  4. USDA Natural Resources Conservation Service. Soil Health Data Explorer — SOH - Dynamic Soil Properties Response to Biochar interpretation, tied to NRCS Conservation Practice Standard 336 (Soil Carbon Amendment). Accessed via Web Soil Survey.
  5. USDA Natural Resources Conservation Service. Soil Survey Geographic Database (SSURGO). https://websoilsurvey.nrcs.usda.gov/
  6. The potential of biochar to mitigate soil acidification: a global meta-analysis (2025). Biochar (Springer). https://doi.org/10.1007/s42773-025-00451-5
  7. Ma, N., Zhang, L., Zhang, Y., Yang, L., Yu, C., Yin, G., Doane, T. A., Wu, Z., Zhu, P., & Ma, X. (2016). Biochar Improves Soil Aggregate Stability and Water Availability in a Mollisol after Three Years of Field Application. PLOS One, 11(5), e0154091. https://doi.org/10.1371/journal.pone.0154091
  8. Novak, J. M., Johnson, M. G., & Spokas, K. A. (2018). Concentration and Release of Phosphorus and Potassium From Lignocellulosic- and Manure-Based Biochars for Fertilizer Reuse. Frontiers in Sustainable Food Systems, 2:54. https://doi.org/10.3389/fsufs.2018.00054
  9. Li, L., Long, A., Fossum, B., & Kaiser, M. (2023). Effects of pyrolysis temperature and feedstock type on biochar characteristics pertinent to soil carbon and soil health: A meta-analysis. Soil Use and Management, 39, 43–52. https://doi.org/10.1111/sum.12848
  10. Ippolito, J. A., Cui, L., Kammann, C., Wrage-Mönnig, N., Estavillo, J. M., Fuertes-Mendizabal, T., Cayuela, M. L., Sigua, G., Novak, J., Spokas, K., & Borchard, N. (2020). Feedstock choice, pyrolysis temperature and type influence biochar characteristics: a comprehensive metadata analysis review. Biochar, 2, 421–438. https://doi.org/10.1007/s42773-020-00067-x
  11. Kumar, A., Bhattacharya, T., Mukherjee, S., & Sarkar, B. (2022). A perspective on biochar for repairing damages in the soil–plant system caused by climate change-driven extreme weather events. Biochar, 4:22. https://doi.org/10.1007/s42773-022-00148-z
  12. Domingues, R. R., Sánchez-Monedero, M. A., Spokas, K. A., Melo, L. C. A., Trugilho, P. F., Valenciano, M. N., & Silva, C. A. (2020). Enhancing Cation Exchange Capacity of Weathered Soils Using Biochar: Feedstock, Pyrolysis Conditions and Addition Rate. Agronomy, 10(6), 824. https://doi.org/10.3390/agronomy10060824 (Supports the 5–10% by-volume rate range and the CEC response to addition rate.)
  13. Ye, L., Camps-Arbestain, M., Shen, Q., Lehmann, J., Singh, B., & Sabir, M. (2020). Biochar effects on crop yields with and without fertilizer: a meta-analysis of field studies using separate controls. Soil Use and Management, 36, 2–18. https://doi.org/10.1111/sum.12546 (Supports the broadacre 5–10 t/ha range and the yield response stratified by fertilizer-pairing.)

This soil map tool is provided for reference only and is offered “as is” without warranty of any kind. Pi Fabricators LLC is not liable for any damages or losses arising from the use of this tool. Suitability ratings come from USDA NRCS SSURGO data, which is mapped at field scale (map units a few acres in size) and may differ from conditions at your actual site — verify with a real soil test and a qualified soil scientist or agronomist before any large-scale biochar application.
